Leviton 1-Pole 20A Industrial Grade AC Toggle Switch, Model 1221-2W*
Original price was: $22.74.$15.92Current price is: $15.92.
- Free Shipping Worldwide
- Protect Your Information, Shop with Safe Payments
- Unbeatable Quality Guaranteed
- The quality you expect, the service you deserve.
Description
Leviton’s 1221-2W single pole AC quiet switch is an industrial-grade AC toggle switch, for extra heavy-duty applications. Representing top-of-the-line quality and peak performance this toggle switch can be used for a range of different applications however, it’s specifically made for industrial use.
Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Benefits
- Self-grounding
- Back & side wire options
- Industrial Grade toggle switch
- Quiet switch
Technical Information
Environmental Specifications
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 65°C
Material Specifications
Base Material: Thermoplastic
Color: White
Contact Material: Silver Alloy
Cover Material: Thermoplastic
Ground Clips: BrassGrounding
Screw: Brass 8-32Strap
Material: SteelTerminal
Screws: Brass 8-32
Toggle: Polycarbonate
Mechanical Specifications
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Termination: Back or Side Wire
Torque Range: 12-14 inch pounds
Product Features
Body Material: Thermoplastic
Color: White
Device Type: Toggle Switch
Function: Single-Pole
Grade: Extra Heavy-Duty Industrial Specification Grade
Grounding: Self-Grounding
HP Rating: 1HP-120V 2HP-240V-277V
Strap Material: Steel
Voltage: 120/277 VAC
Standards and Certifications
ANSI: C-73
CSA C22.2 No. 111: File #152105
NEMA: WD-1 & WD-6
NOM: 057
RoHS: Compliant
UL Fed Spec WS896E: File #E7458
UL Standard: UL 20
Warranty: 10-Year Limited
Be the first to review “Leviton 1-Pole 20A Industrial Grade AC Toggle Switch, Model 1221-2W*”
Related products
Ceiling Lighting

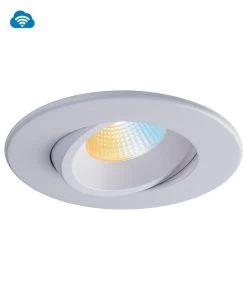

Liteline 4″ Smart OnCloud Luna White Round Gimbal Recessed Fixture, Model RA4-12RG-WZ-90WH*
