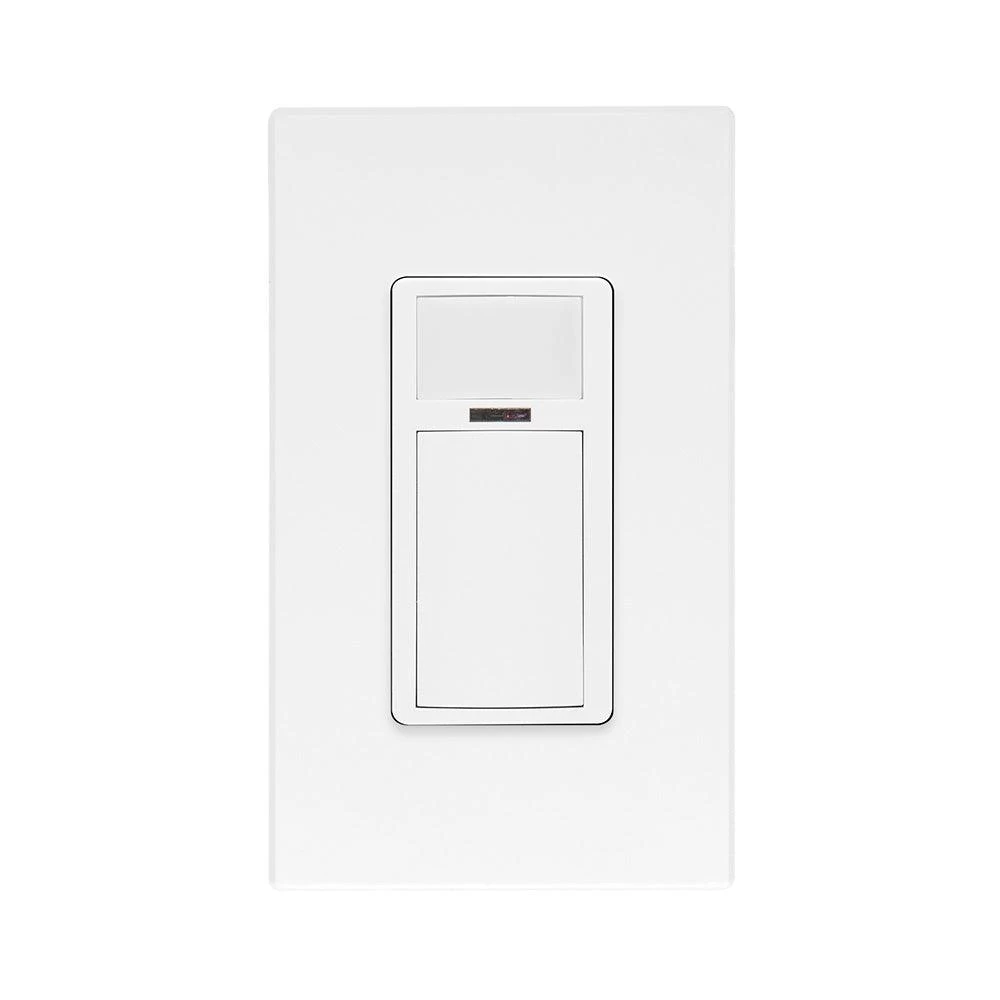

Leviton Smart Wall Switch Occupancy Sensor, Model ODS15-I1W*

Description

The Leviton Smart Wall Switch Occupancy Sensor (ODS15-Ixx) uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper resistant lens. When a person passes in or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as an occupant is moving through the sensor zones. The ODS15-I1W ’s vacancy mode features a Manual-ON/Auto-OFF for installations where manual-ON switching is required for energy code applications.

A “minor motion” zone detects small body movements allowing the lights to stay ON even though a person may not be moving or walking around the room. The “major motion” zone, exhibits a lesser degree of sensitivity and requires larger movements. Configuration of ODS15-I1W is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth® enabled Android or iOS device.

Simple configuration can also be applied using pushbutton setup for several popular preconfigured options.

Benefits

• Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and manual control requirements
• Fits in a standard wall box and gangable with other units
• Controls General Purpose plug loads up to 20A and LED lighting loads up to 10A
• One relay module for single-level switching
• 180° field-of-view provides approximately 1,100 square feet of coverage
• Maximum sensing distance in front of the sensor is 30-40 feet and 15-20 feet on either side
• Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device: Set operating mode to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF
• Adjust the sensitivity of the sensor to increase or decrease coverage area
  • Adjust timeouts
  • Activate the nightlight and select nightlight colors
  • Add daylighting hold-off and select target daylighting levels
• Set a security code to lock configuration settings
  • Out-of-the-box configuration default mode: Auto-ON/Auto-OFF with 10-minute time out
• Sensitivity set to 75%
• Nightlight and daylighting disabled

Technical Information

Color: White
Coverage (Sq.Ft.): 1000
Grade: Commercial
Mounting Type: Wall Switch
Product Line: ODS15
Sensor Type: Occupancy / Vacancy
Technology: Passive Infrared
Frequency: 60Hz
Voltage: 120 VAC
Neutral Wire Connection: Required
Switch Type: Single-Pole
Wallplate: Non-included

Document

Data Sheet

Quick Start Guide for the Smart Sensor App

Installation guide
