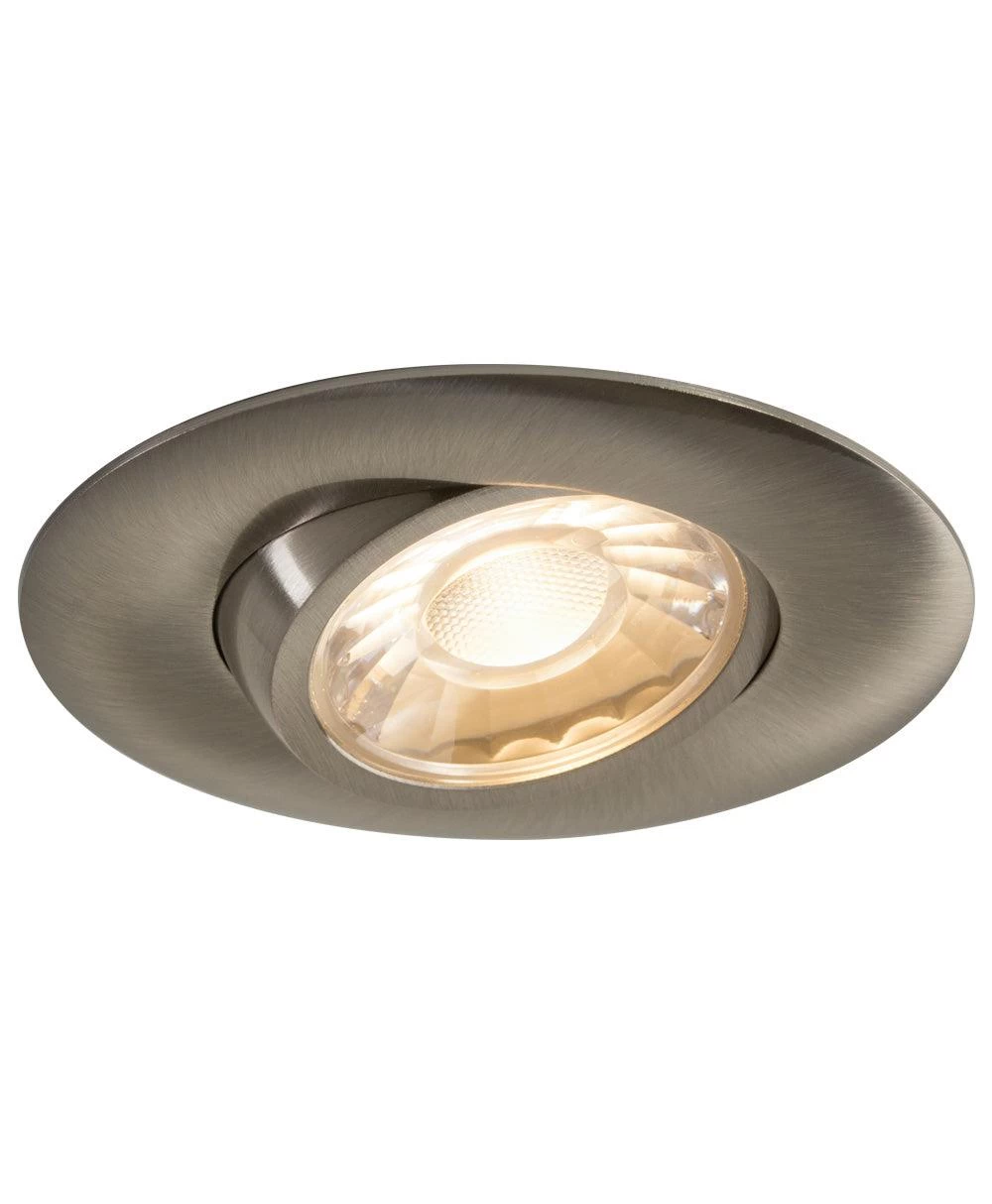

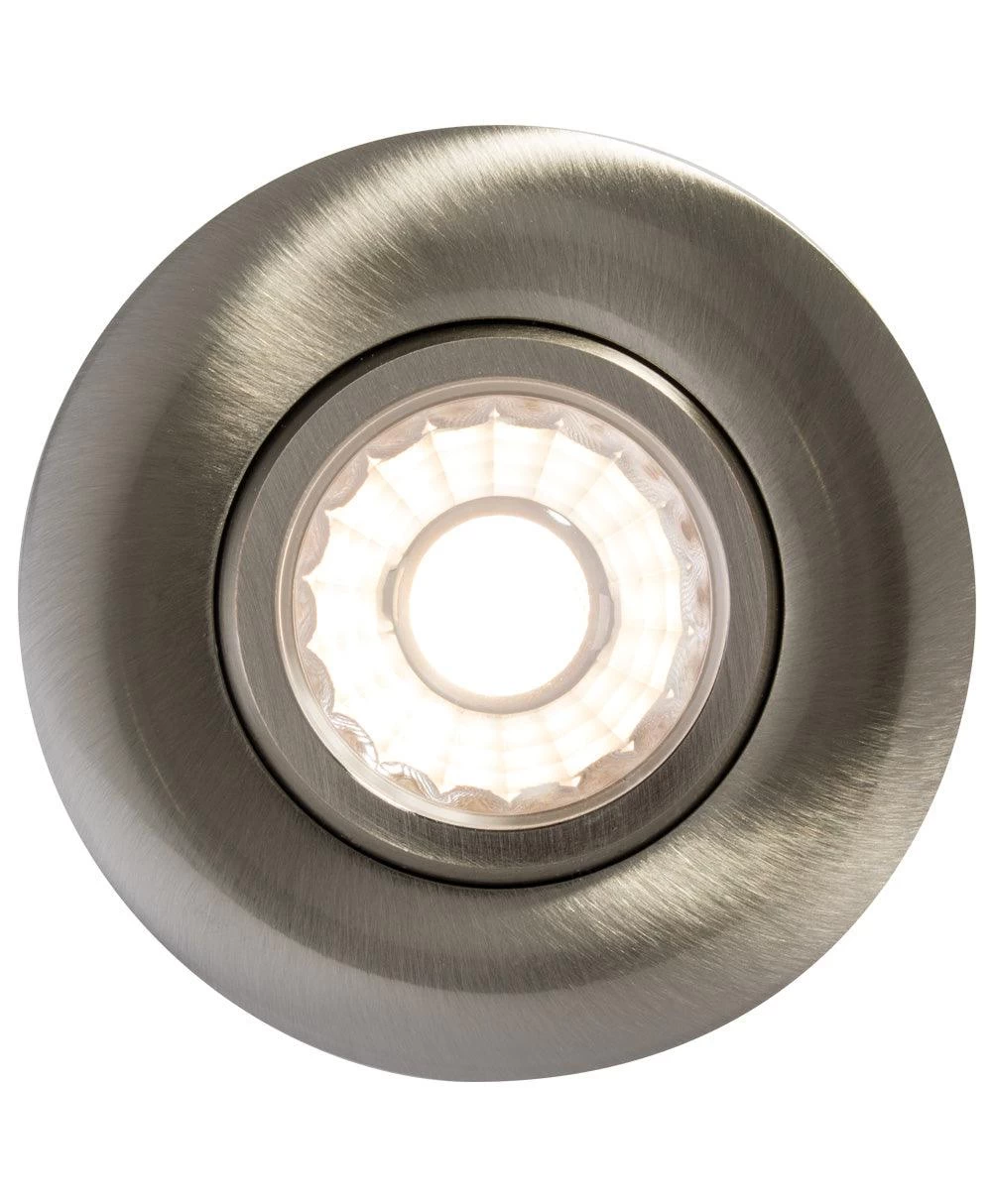

Liteline 3″ Luna Brushed Nickel Gimbal Recessed Fixture, Soft White (3000k), Model RA3-7G-30K-90BN

Description

The RA3-7G is a 7 watt 3″ gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations.

Features

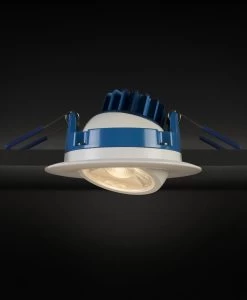

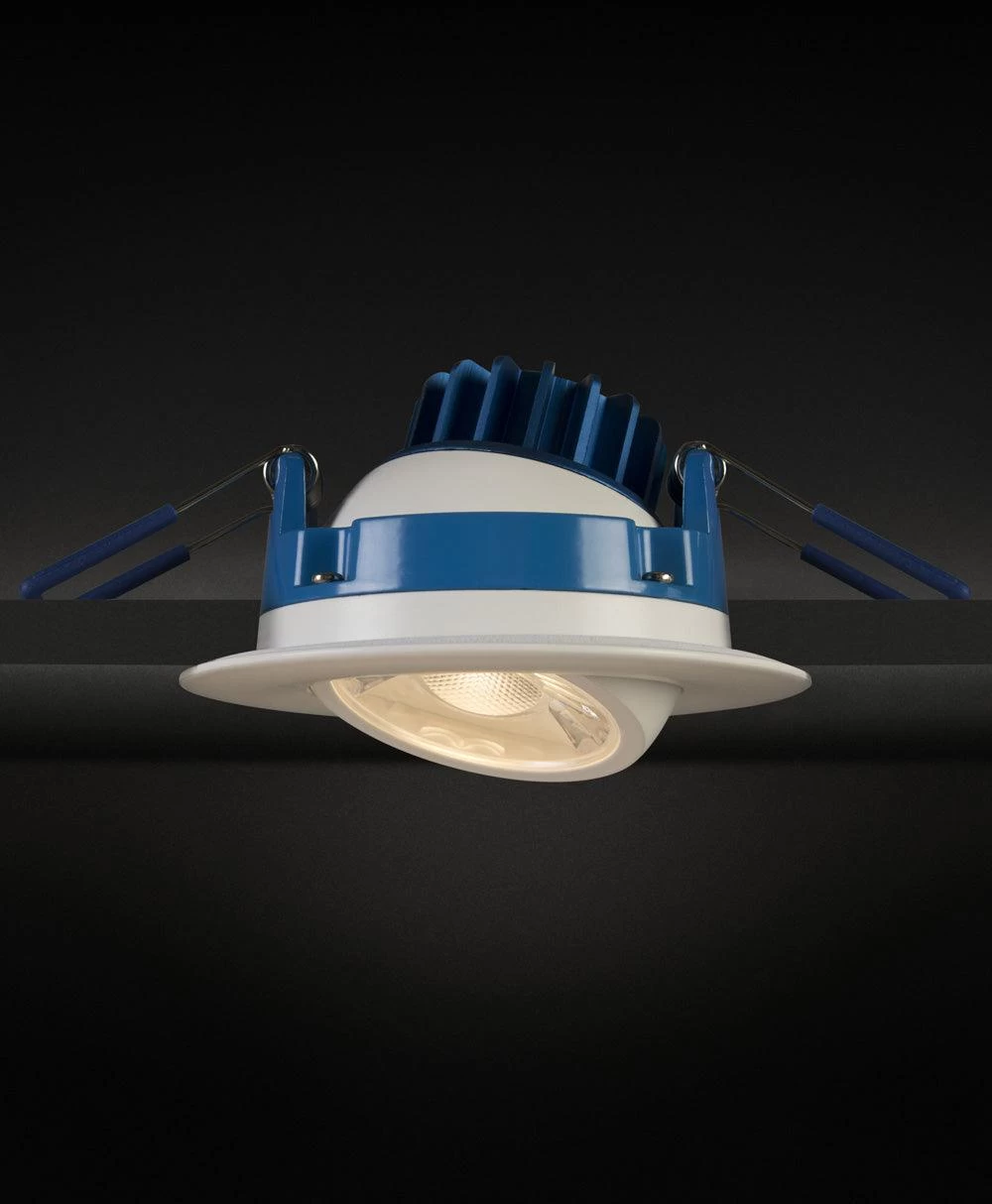

• Durable airtight aluminum body with adjustable gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source.
• This general application light fixture features a 7 watts LED module that maintains uniform intensity producing up to 650 Lumens; with a typical CRI of 90.
• 100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers (See specification sheet for listing of compatible dimmers)
• The fixture lens provides 45° beam spread.
• Includes two spring loaded clips to attached to any ceiling material
• Extruded aluminum hardwire box with 170mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18″ cable from driver to fixture.
• Three “Quick connect” push-in terminals for fast and easy wiring.
• Operating temperature range from -20°C to 40°C (-4°F to 104°F)
• Suitable for wet locations and suitable for insulated ceiling applications.

Technical Information

Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 45°
CCT: 3000 K
Certification: cETLus
Class II: Yes
Colour: Brushed Nickel
CRI: 90
Dimming: Yes
Dimming Tech: TRIAC/ELV
Energy Star: Yes
Hole Cut: Ø 2¾ ” (70mm)
Input: 100-135V AC, 60Hz
LM79: Yes
LM80: Yes
Lumens: 570
Lumens per Watt: 75
Power Factor: 0.95
Projected Life: 70% @ 36,000 hrs
Warranty: Lifetime
Wattage: 7W
