Liteline 4″ SlimLED Retrofit, Model SLMT4-8W

Description

The SLMT4-8W is an 8 watt 4″ round downlight for retrofit application onto existing 4″ recessed housings or 4″ octagon box. It is a high-performance, easy to install residential grade downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations.

Features

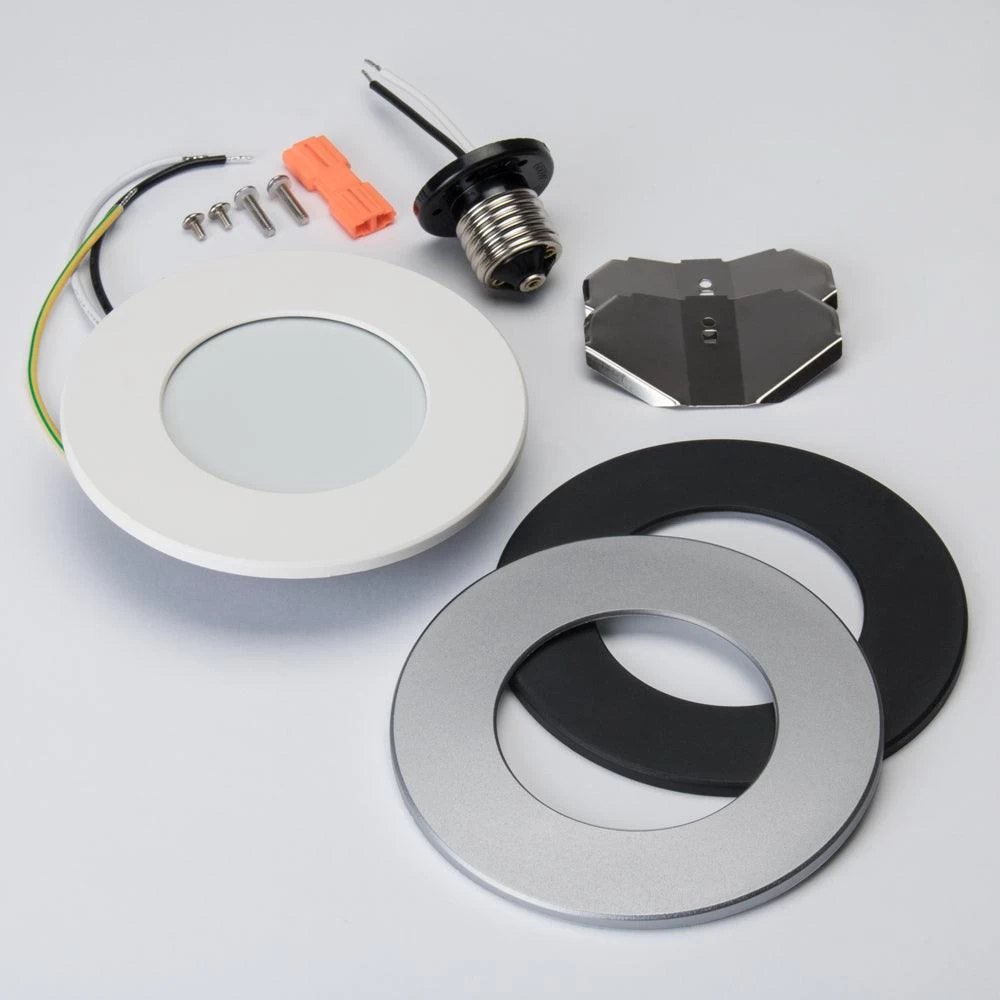

• Durable airtight plastic body with mounting holes and included butterfly clips.

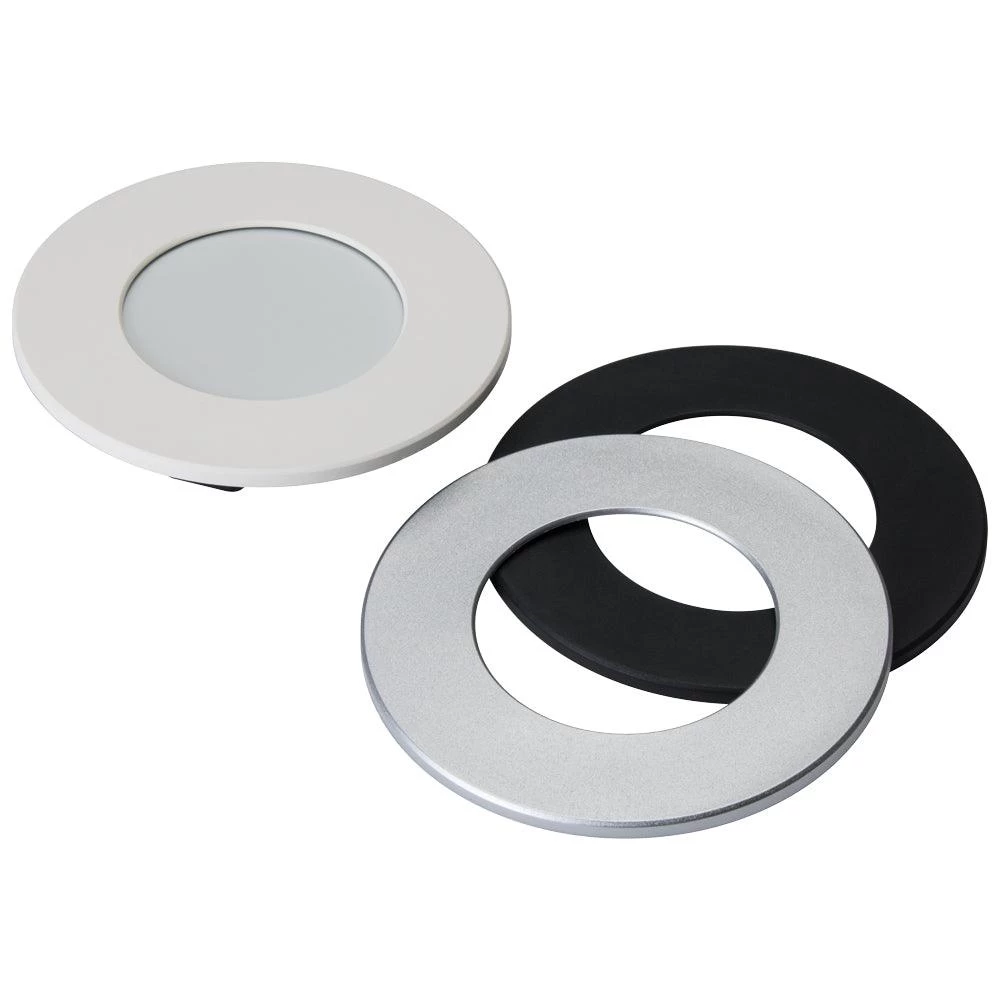

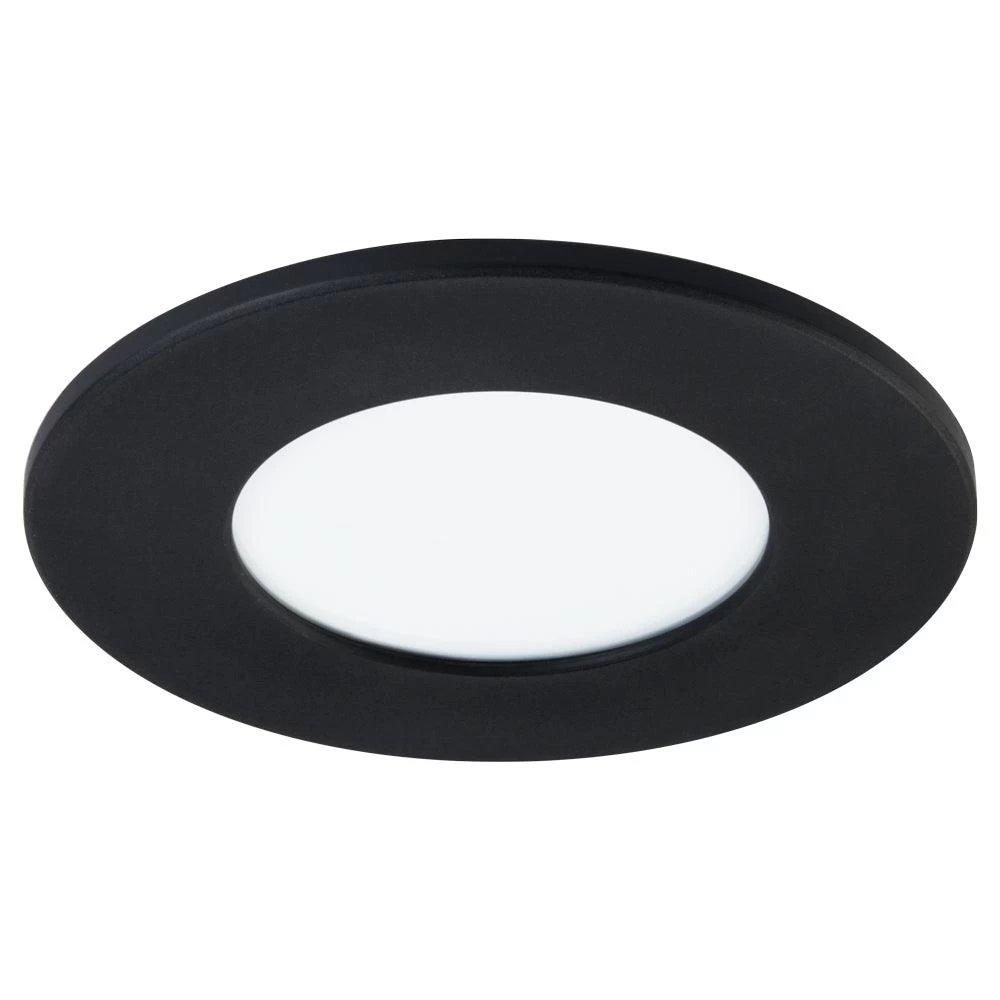

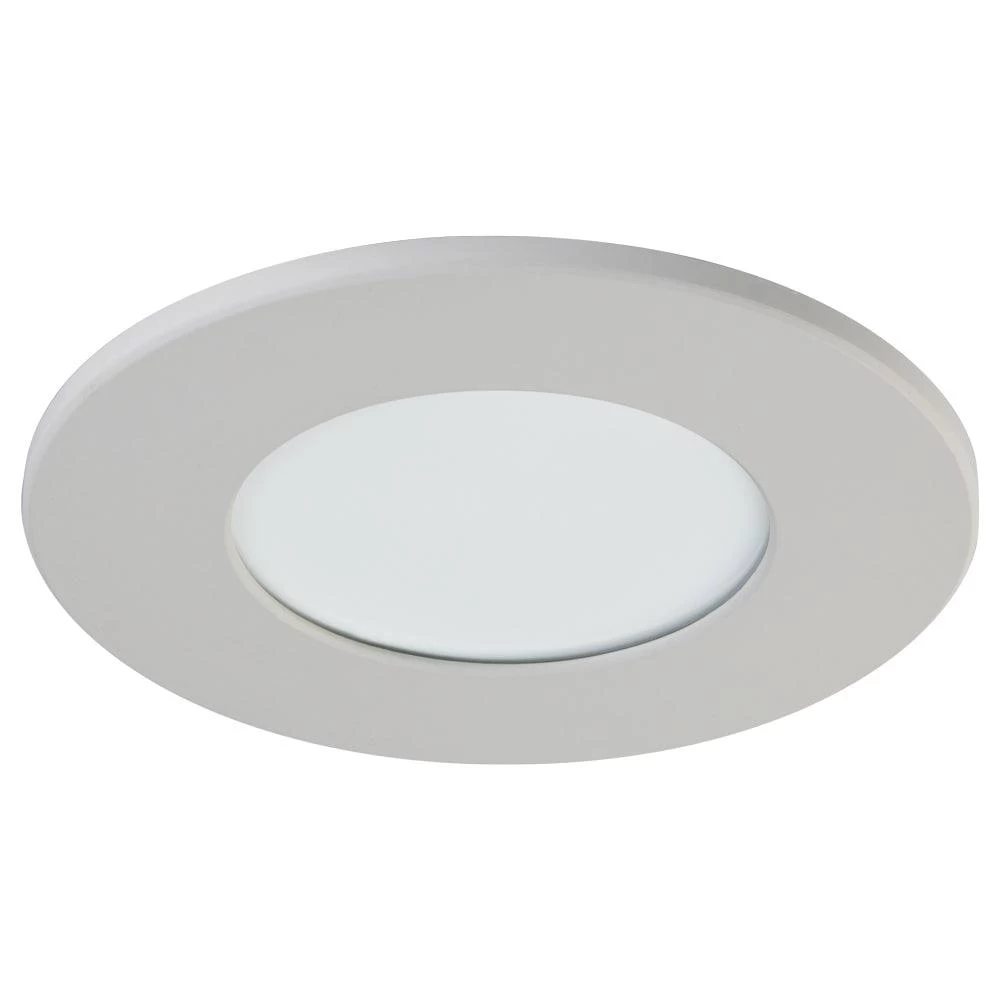

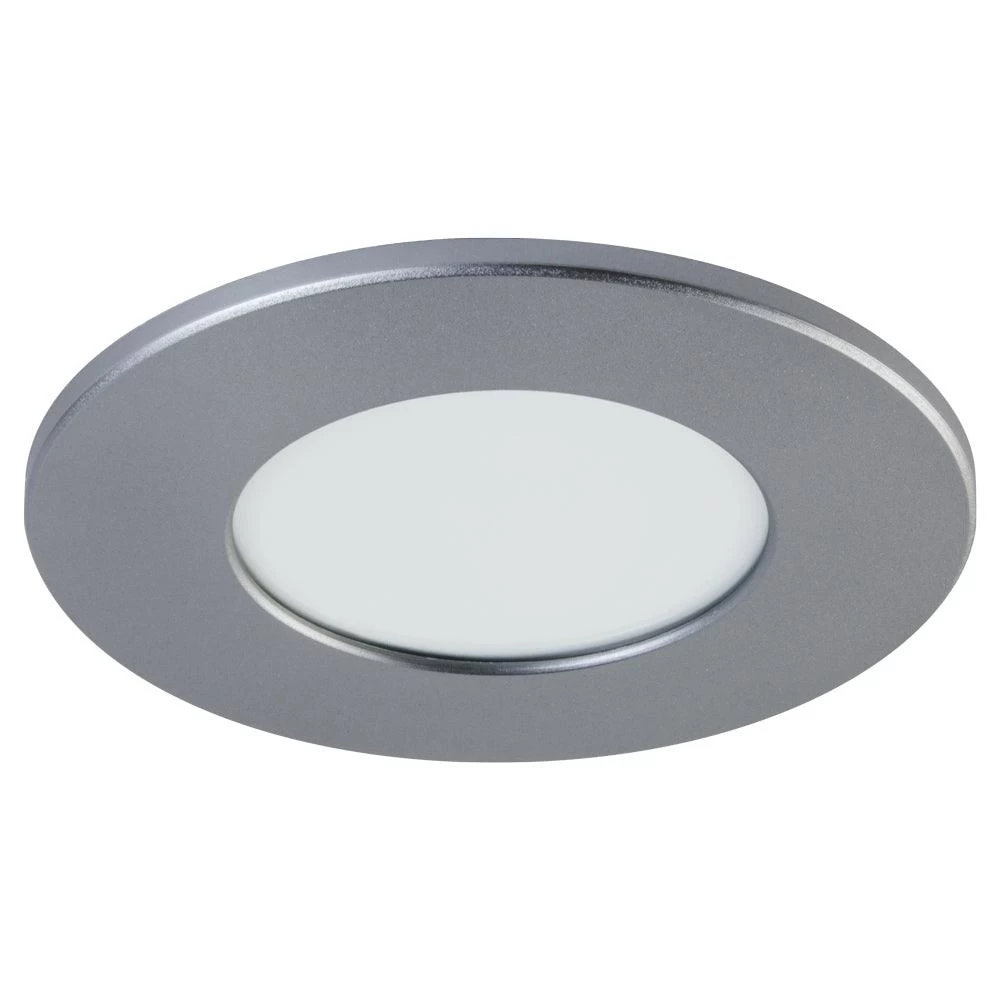

• On-face magnets allows for securely attaching one of three included dead front magnetic faceplates (White, Black and Silver)
• This general application light fixture features an 8 watt LED module that maintains uniform intensity producing up to 560 lumens, with a typical CRI of 90.
• Available with 5 step CCT switch 2700 K, 3000 K, 3500 K, 4000 K and 5000 K
• 100%-10% dimming capability. This fixture is compatible with industry standard forward/reverse phase dimmers, Triac/ELV dimmers
• The lens provides 110° beam spread
• Can be mounted to a compatible 4″ recessed housing via included butterfly clips, or attached to an industry standard 4″ octagon box with minimum depth of 1.5″ (40 mm) via mounting holes.
• Compatible with those recessed housings: RF401, RF402 and RF405 series
• Built-in on board driver with 40mA output and 100-135V AC input
• “Quick connect” push-in terminals for fast and easy wiring
• -30°C to 40°C (-22°F to 104°F
• Suitable for wet locations
• fire-rated when used in a fire-rated octagon box

Technical Information

Application: Recessed / Flushmount / Downlight
Approved Location: Wet
Beam Angle: 110°
CCT (Selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cETLus
Color: Black, Silver and White
CRI: 90
Dimming: Yes
Dimming Tech: Forward/Reverse phase / TRIAC/ELV
Energy Star: Yes
Hole Cut Size: Ø 43⁄16″ (106mm)
Input: 100-135V AC, 60Hz
LM79: Yes
LM80: Yes
Lumens: Up to 560
Lumens per Watt: Up to 70
Power Factor: 0.9
Projected Life: 70% @ 50,000 hrs
Warranty: Lifetime
Wattage: 8W
