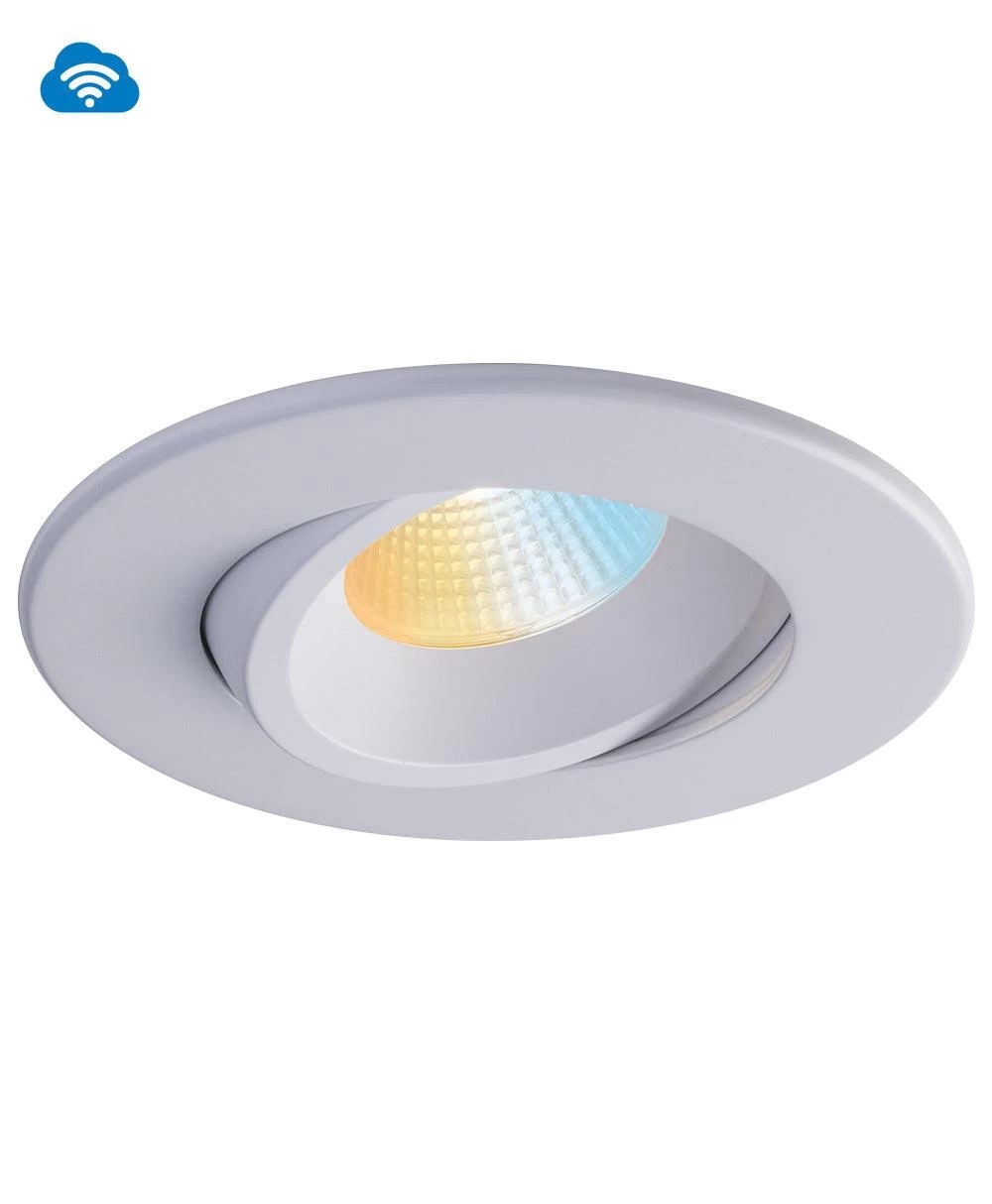

Liteline 4″ Smart OnCloud Luna White Round Gimbal Recessed Fixture, Model RA4-12RG-WZ-90WH*

Description

Elevating the LUNA that you know and love to have white tunability through Wi-Fi while still keeping great features like WET location rating, 360-degree rotation and 30-degree tilt.

Features

• Durable airtight aluminum body with adjustable regressed gimbal.
• includes anodized blue heat sink to provide maximum airflow for the LED light source
• This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 850 lumens, with a typical CRI of 90
• Tunable White 2700 k to 5000 k color temperatures
• 100%-10% Wi-Fi dimming capability. Dimming controlled via WiZ App and Room Controller
• Fixture Lens provides 38° beam spread
• Includes two spring loaded clips to attached to any ceiling material
• Extruded aluminum hardwire box with 12 watt (300 mA) Wi-Fi dimmable LED driver with 100-135V AC input.
• Includes an 18″ wire with 3-Pin DC connector between driver and fixture
• Can be controlled via the WiZ App (works with iOS and Android) from anywhere. Voice control can also be achieved by integrating the app with most smart speakers. Works with Google Assistant, Siri, Alexa and IFTTT
• Three “Quick Connect” push-in terminals for fast and easy wiring
• Minimum starting temperature of -40°C (-40°F)
• Suitable for Wet locations
• Approved for direct contact with insulation
• Suitable for indoor/outdoor applications

Technical Information

Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings / Indoor / Outdoor
Beam Angle: 38°
CCT: Tunable White (2700 K – 5000 K)
Certification: cETLus
Class II: Yes
Colour: White
CRI: 90
Dimming: Yes
Dimming Tech: Wi-Fi Dimming (via WiZ App)
Energy Star: Yes
Hole Cut: Ø 4¼ ” (108mm)
Input: 100-135V AC, 60Hz
Lumens: Up to 850
Lumens per Watt: Up to 71
Power Factor: 0.9
Projected Life: 70% @ 50,000 hrs
Warranty: 3-Year
Wattage: 12W

Document

Specification Sheet

Installation
