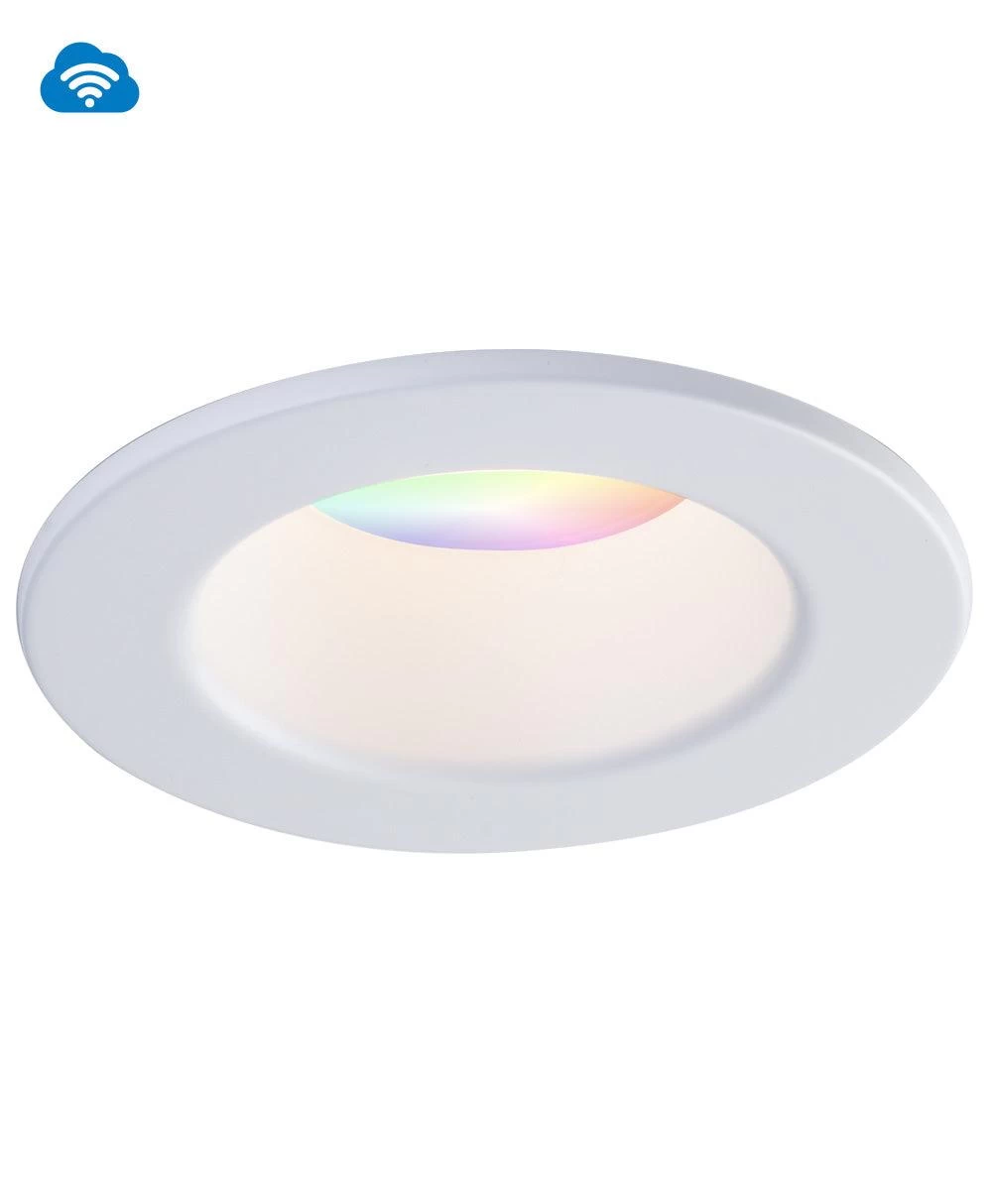

Liteline 4″ White Skye OnCloud Recessed Fixture, Model SLMB4-RGBTW-WZ-WH

Description

Full color and white tunable with magnetic interchangeable baffles, SKYE OnCloud is ready to add interest to any room with regressed optics for less glare and a quiet ceiling. Use the app to control your light or install a OnCloud Room Controller (Not included)

Features

• Durable airtight aluminum body with UV stable diffuser lens for low glare.
• Includes silicone gasket for wet location applications.
• Includes a white interchangeable magnetic trim.
• This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 900 lumens, with a typical CRI of 90. RGB and tunable white (2700K to 5000K)
• 100%-10% Wi-Fi dimming capability. Dimming controlled via the WiZ App and Room Controller (Not included)
• The fixture lens provides 75° beam spread
• Includes two spring loaded clips to attached to any ceiling material
• Extruded aluminum hardwire box with 300mA Wi-Fi dimmable LED driver with 100-135V AC input.
• Includes 18″ wire with 6-Pin DC connector between driver and fixture
• Can be controlled via the WiZ app (Works with iOS and Android) from anywhere. Voice control can also be achieved by integrating the app with most smart speakers. Works with Google assistant, Siri, Alexa and IFTTT
• “Quick connect” push-in terminals in hardwire box for fast and easy wiring
• Minimum starting temperature of -40°C (-40°F)
• Suitable for wet locations, indoor or outdoor and approved for direct contact with insulation.



Technical Information

Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings / Indoor / Outdoor
Beam Angle: 75°
CCT: RGB + Tunable White (2700 K – 5000 K)
Certification: cETLus
Class II: Yes
Color: WH
CRI: 90
Dimming: Yes
Dimming Tech: Wi-Fi Dimming (via WiZ App)
Hole Cut 4″: 4¼ ” (108mm)
Input: 100-135V AC, 60Hz
Lumens 4″: up to 900
Power Factor: >0.9
Projected Life: 70% @ 50,000 hrs
Warranty: 3-Year
Wattage:  12W
