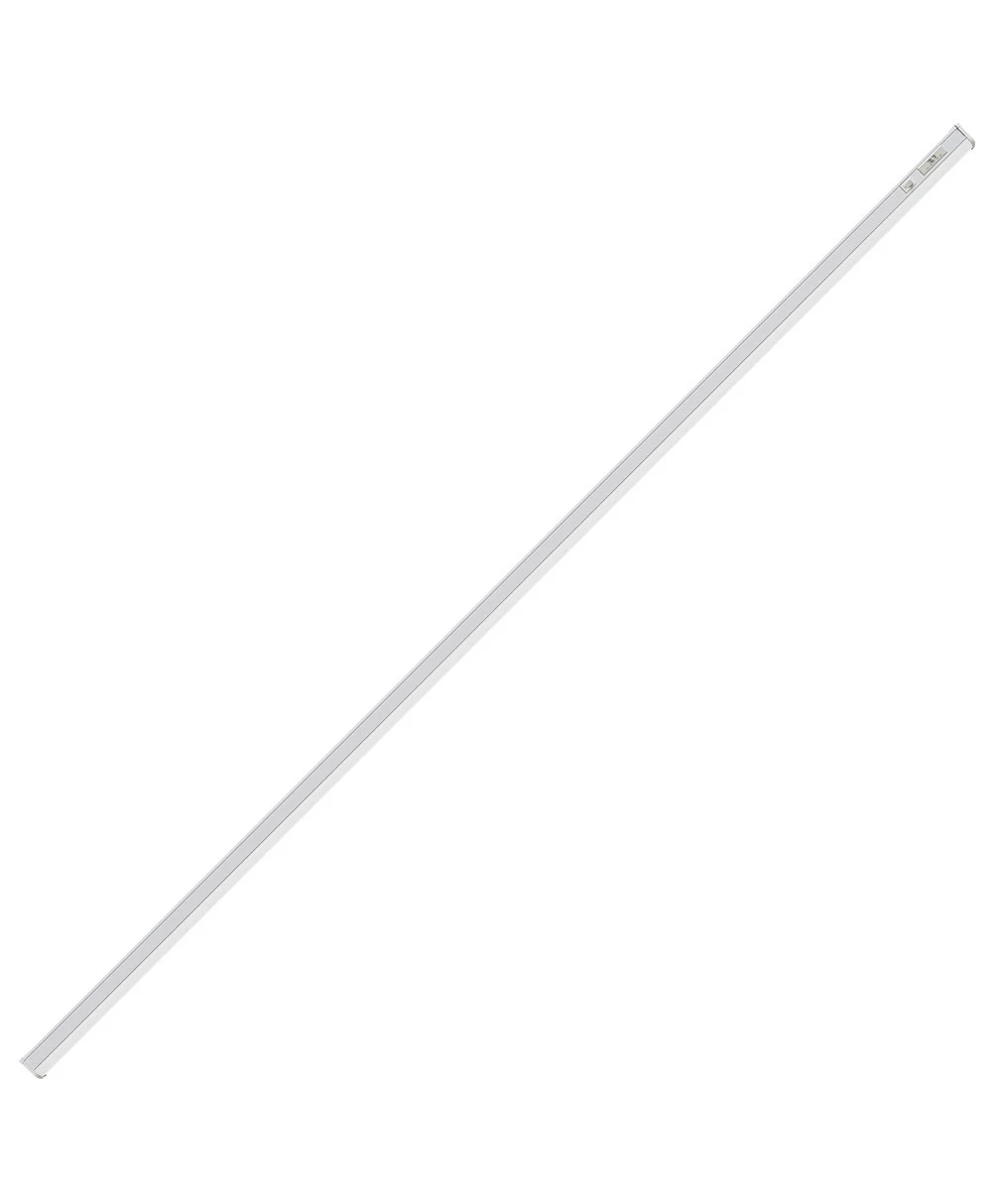

Liteline LEDBAR 58 Inch Long With 2700-5000K CCT Select Switch, Model LEDBAR58-CCT

Description

The LEDbar is an integrated linear light bar, that is available in various lengths, with a color selectable switch on the fixture. With dependable features that include a durable extruded aluminum frame, you can be confident in product longevity. Suitable for dry locations, this product is an optimal choice for kitchen spaces amongst other similar applications. The built-in, non-flicker, electronic LED driver provides dimming capability with Triac, ELV and incandescent dimmers. The ability to hardwire this fixture is accompanied by the capability to link up to 10 fixtures with an added no shadow linking connector to maximize light output. With a built in on/off switch, a choice of 6 lengths, LEDBAR gives you the perfect combination of design and functionality.

****POWER CORD NEED TO BE ORDER SEPARATELY. SEE ALFT6000-WH-3 HERE

Features

• Durable extruded aluminum frame with frosted smooth lens.
• Suitable for dry location applications only.
• Can be use in closets.
• On-body On/Off switch is provided for individual control (Except 9″ models)
• 5-Position 2700-5000K CCT select switch.
• Fixture is provided with built-in silent non-flicker electronic LED driver, 120V, 50/60HZ
• Fixture is 100-10% dimmable with industry standard TRIAC/ELV and incandescent dimmers
• Powered by LED integrated strip that maintains uniform intensity with 70% lumens at 60,000 hours with a rated life of 36,000 hours average life; at 90 CRI
• The fixture lens provides for 125° beam spread
• Complete with a joiner, these no shadow linking fixtures can be linked up to 2500 mA / 300 W.
• Hardware provided for mounting fixture to standard horizontal surfaces or vertical wall surface
• Operating temperature from -18°C to 40°C (0°F to 104°F)

Technical Information

Length: 58 in (1474mm)
Approved Location: Dry
Beam Angle: 125°
CCT Switch: 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cULus
Connection Type: 3-Wire
CRI: 90+
Dimming: Yes
Dimming Technology: TRIAC / ELV
Lumens: Up to 1858
Max. Operating Temp: 40°C
Min. Start Temp: -18°C
Lumen Maintenance: 70% @ 60,000 hrs
Power Factor: >0.95
Rated Life: 36,000 hrs
THD: <15
Voltage: 120V
Warranty: 3 Years
Wattage: 22 watt
