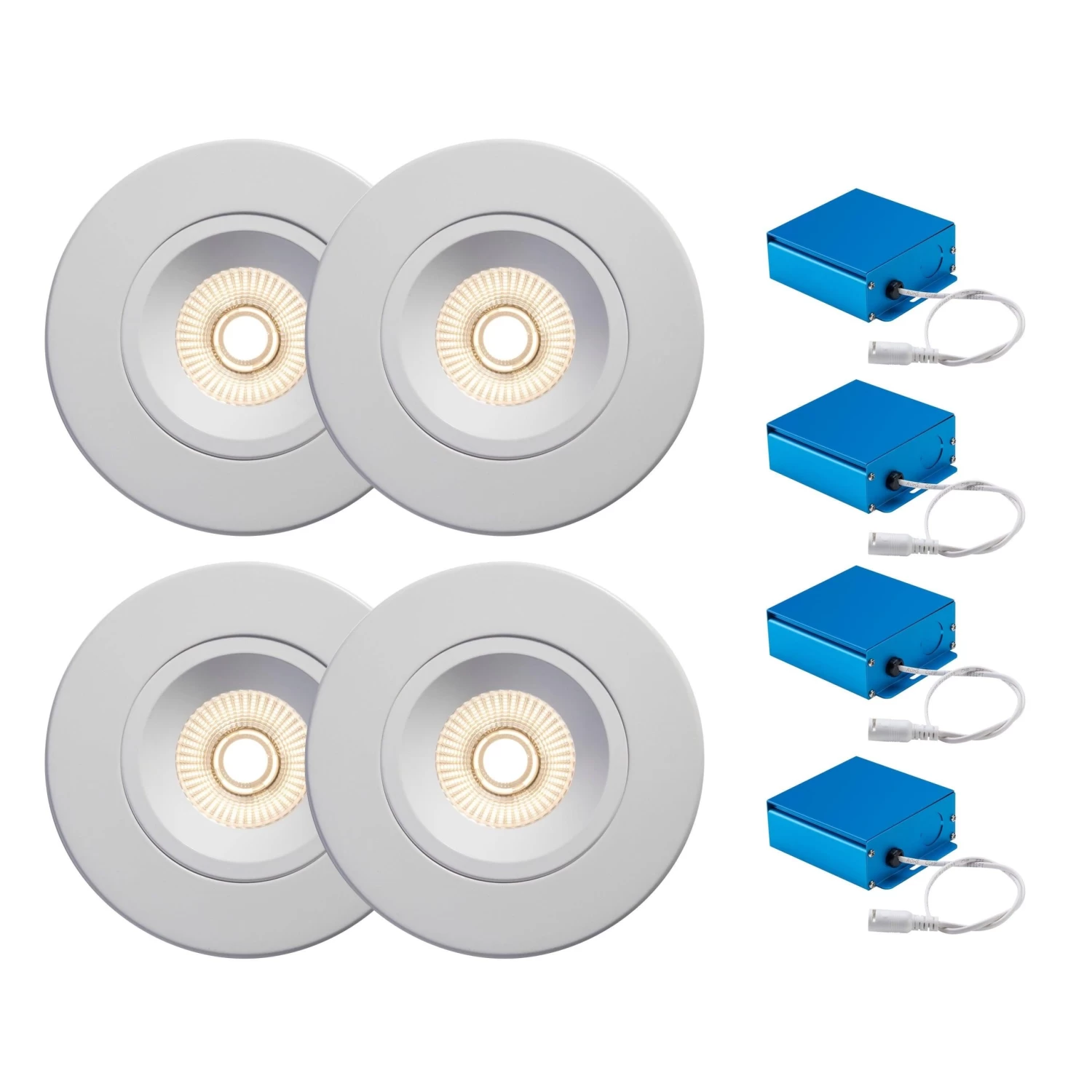

Liteline Package Of 4x 4″ Luna LED White Round Regressed Gimbal Recessed Fixture, Dim To Warm, Including 1x OnCloud Dimmer, Model RA4-12RG-DTW90WH-4KT

Description

The LUNA 4″ fixture, is a 12 watt, recessed light fixture for retrofit, remodel or new construction applications with 360-degree rotation and 30-degree tilt. It is a high-performance, easy to install residential grade downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations. Available here in a 4-pack with an OnCloud dimmer for Wi-Fi control through the WiZ app to create scenes, set schedules and connect with smart speakers.

***The On Cloud Dimmer only works for single pole applications.***

Features

• Durable airtight aluminum body with adjustable regressed gimbal.
• Includes anodized blue heat sink to provide maximum airflow for the LED light source
• General application light fixture featuring a 12 watt LED module that maintains uniform intensity producing up to 700 lumens, with a typical CRI of 90
• Available in 3000k color temperatures
• 100%-10% dimming capability. This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers
• Fixture lens provides 38° beam spread
• Includes two spring loaded clips to attached to any ceiling material
• Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18″ FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings
• Three “quick connect” push-in terminals for fast and easy wiring
• Operating Temperature from -20°C to 40°C (-4°F to 104°F)
• Suitable for wet locations
• Approved for direct contact with insulation

Technical Information

Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 38°
CCT: 3000 K to 2000 K
Certification: cETLus
Class II: Yes
Colour: White
CRI: 90
Dimming: Yes
Dimming Tech: Forward/reverse-phase – TRIAC/ELV
Energy Star: Yes
Hole Cut: Ø 4¼ ” (108mm)
Input: 100-135V AC, 60Hz
Lumens: Up to 700
Lumens per Watt: Up to 59
Power Factor: 0.9
Projected Life: 70% @ 50,000 hrs
Warranty: Lifetime
Wattage: 12W
