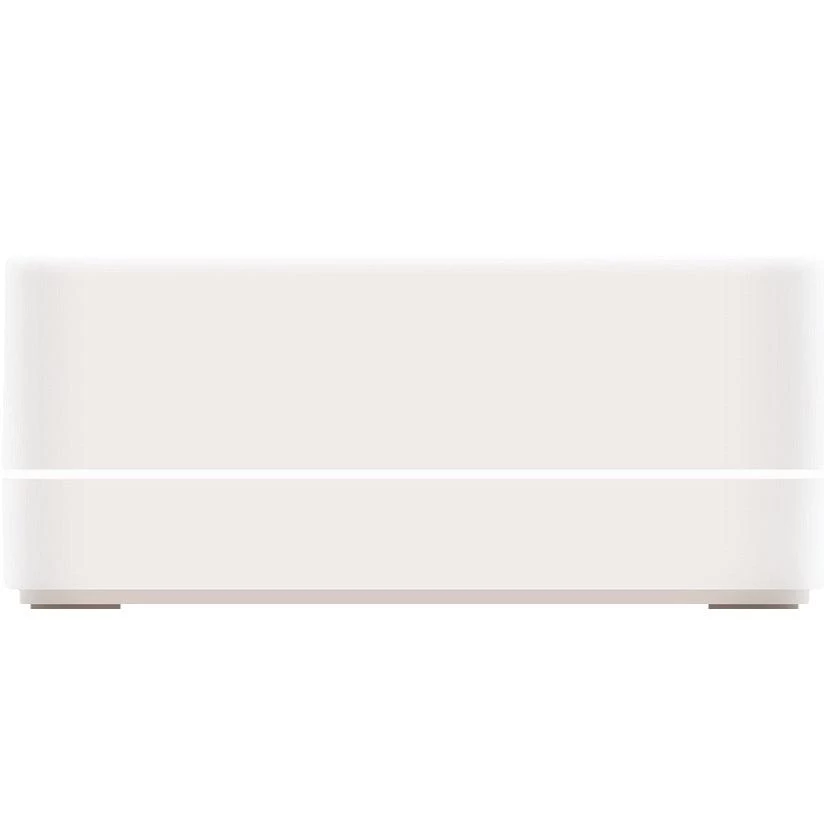

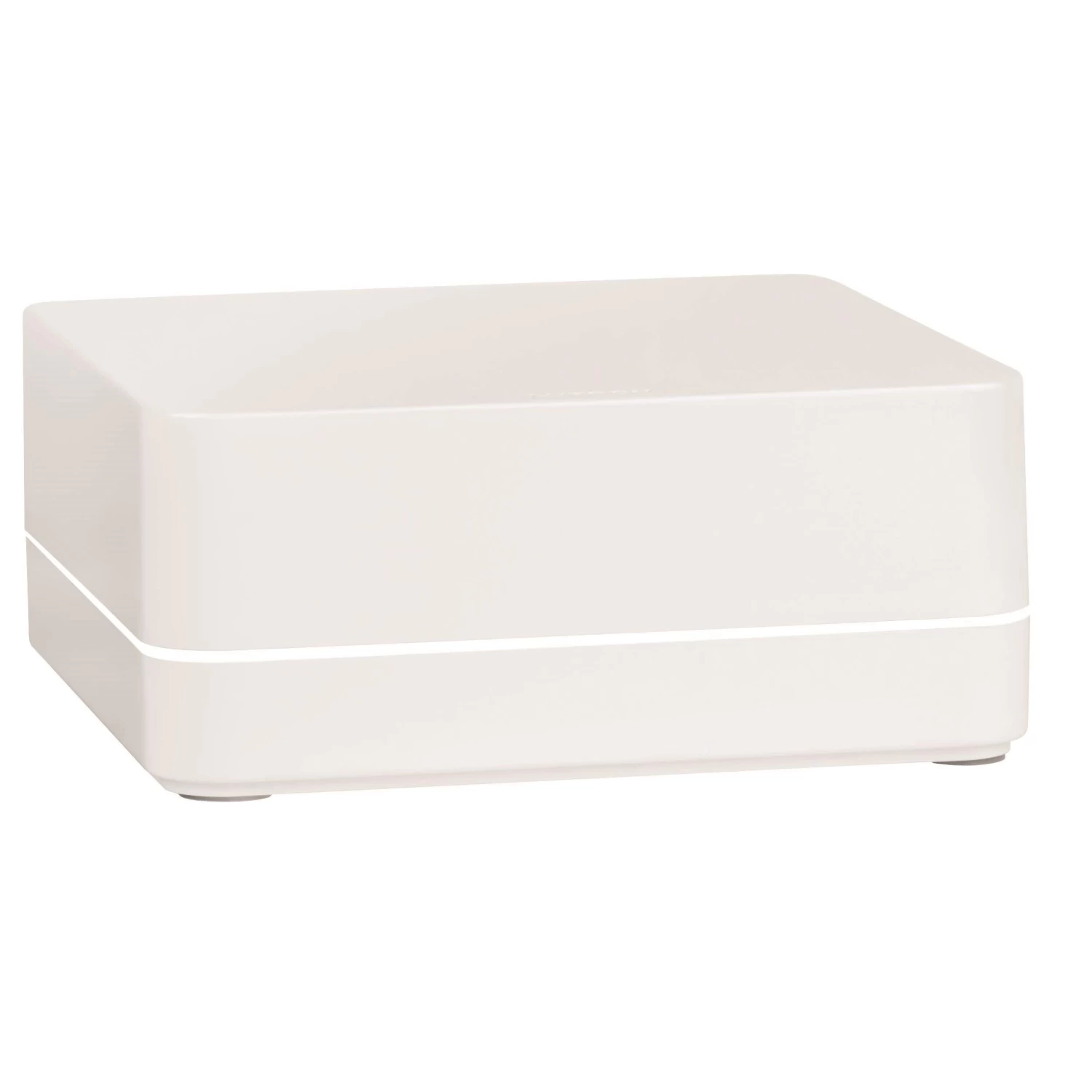

Lutron Caseta Wireless Repeater (Expands The Range Of Your Caseta Lighting Control System), Model PDREPWH

Description

The Caseta Wireless repeater allows for the wireless range expansion of your Caseta lighting control system for whole-house coverage. Caseta Wireless repeaters extend the range of Radio Frequency (RF) signals that are sent between devices. One wireless repeater can be added to extend the RF range for larger system applications. Each wireless repeater can communicate with Caseta devices withing 30ft (9m), covering an area of approximately 2500 ft (232 m), and can be placed to 60 ft (18 m) from the Lutron bridge.

Benefits

• Expands RF/ wireless range up to 60 ft
• Easily adds to an existing system through the Caseta App or system software
• One wireless repeater per system
• Works with Caseta Wireless systems
• Certified: cILus listed, FCC approved, IC certified, IFETEL certified
• Tested to withstand electrostatic discharge without damage or memory loss in accordance with IEC 61000-44-2
• Tested to withstand surge voltage without damage or loss of operation, in accordance with IEEE C62.41-1991

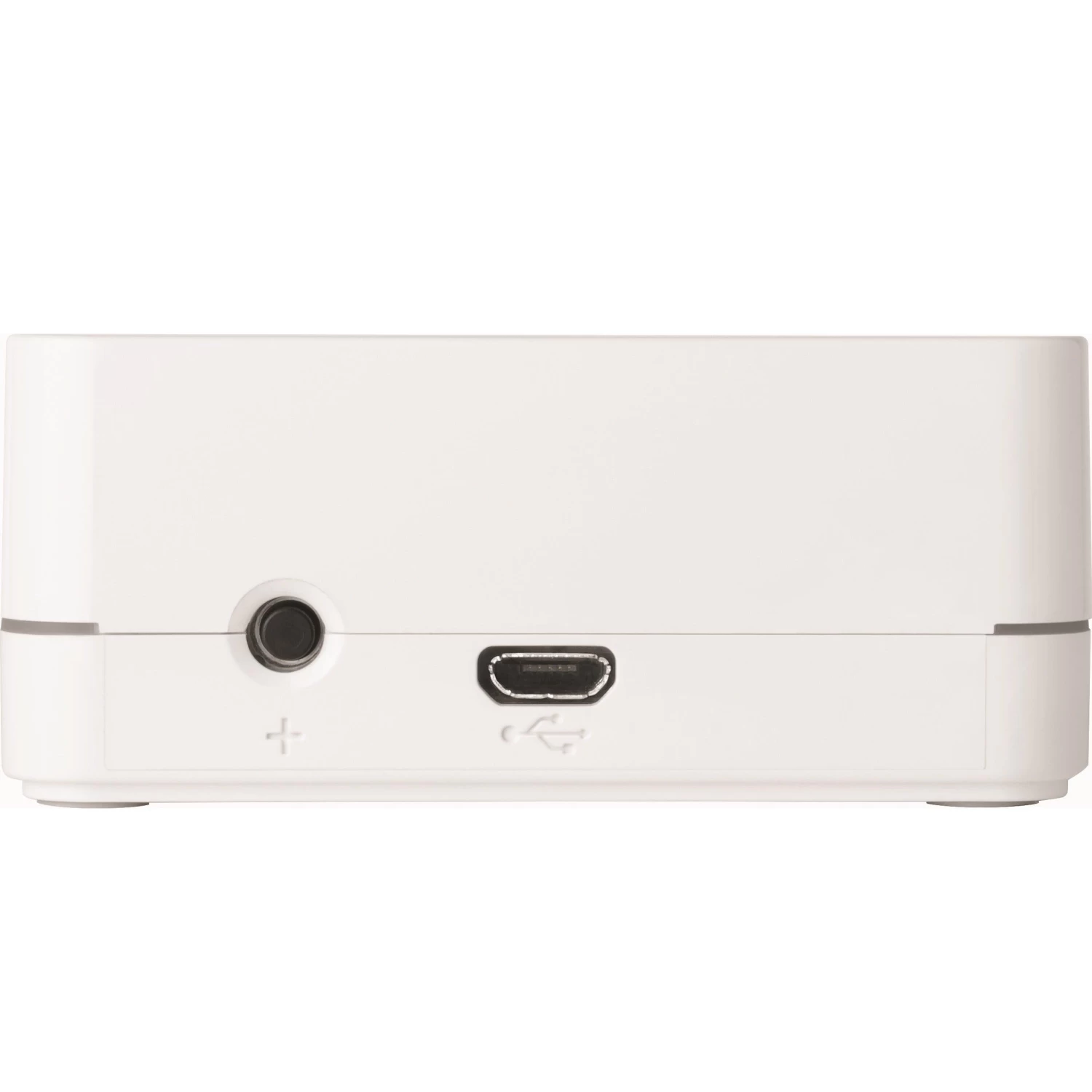

• USB (power only) Can be plugged in anywhere, does not require an ethernet connection
• All devices must be located within 30 ft (9m) of a repeater or bridge
• Indoors use only
• Caseta Wireless repeater counts as one device towards the Caseta system device limit
• System devices operate on frequencies between 431.0 MHz to 437.0 MHz
• Should power be interrupted, the wireless repeater will return to its previous state when power is restored

Technical Information

Model: PD-REP-WH
Voltage: 5V 100mA
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
Power: 5 V- 100 mA
Power Supply (included): 5 V- 550 mA
Cable length: 6 ft (1.83 m)
Test Conditions: LED on, powered by the 5 V- adapter
Caséta Wireless repeater: 0.45 W

Documents

Specification sheet
